Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16"
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$94.26
You save:
$16.64

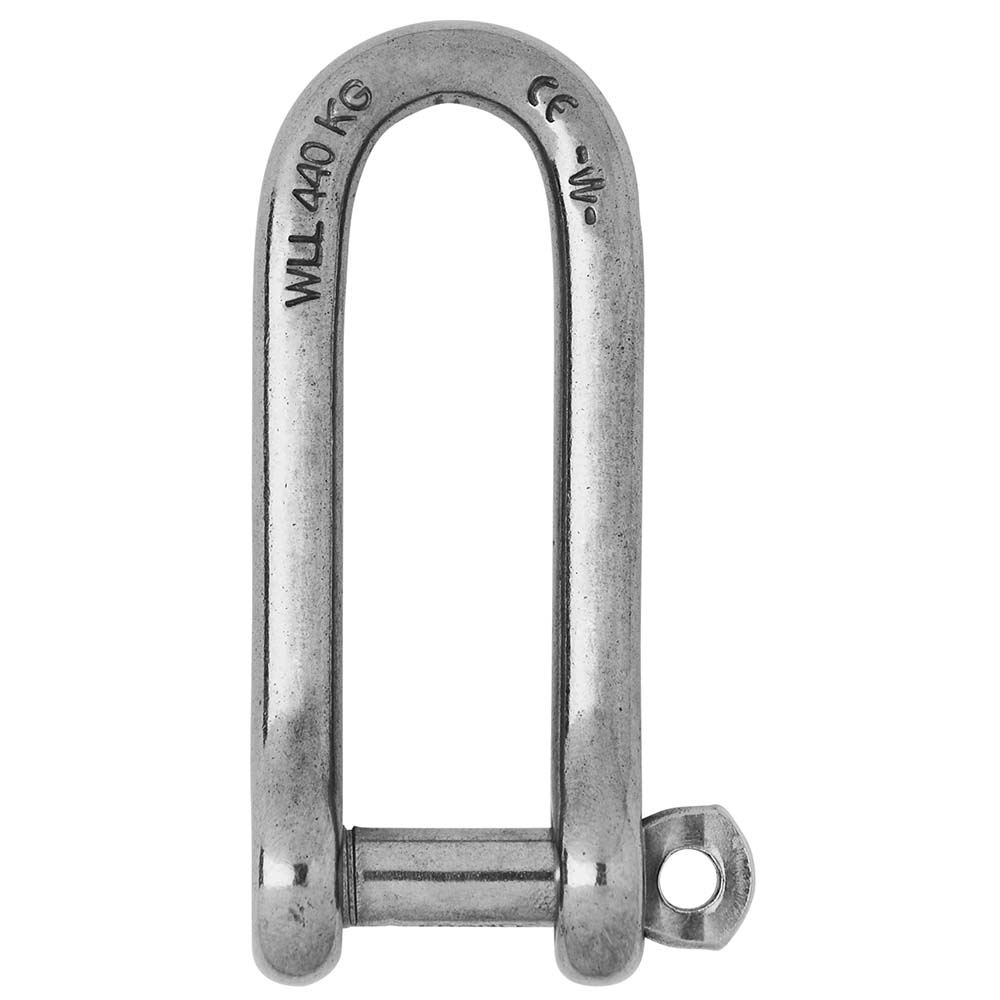

Captive Pin Long D Shackle - Diameter 8mm - 5/16"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1580
- Breaking load (lb) 7930
- Weight (lb) 0.203

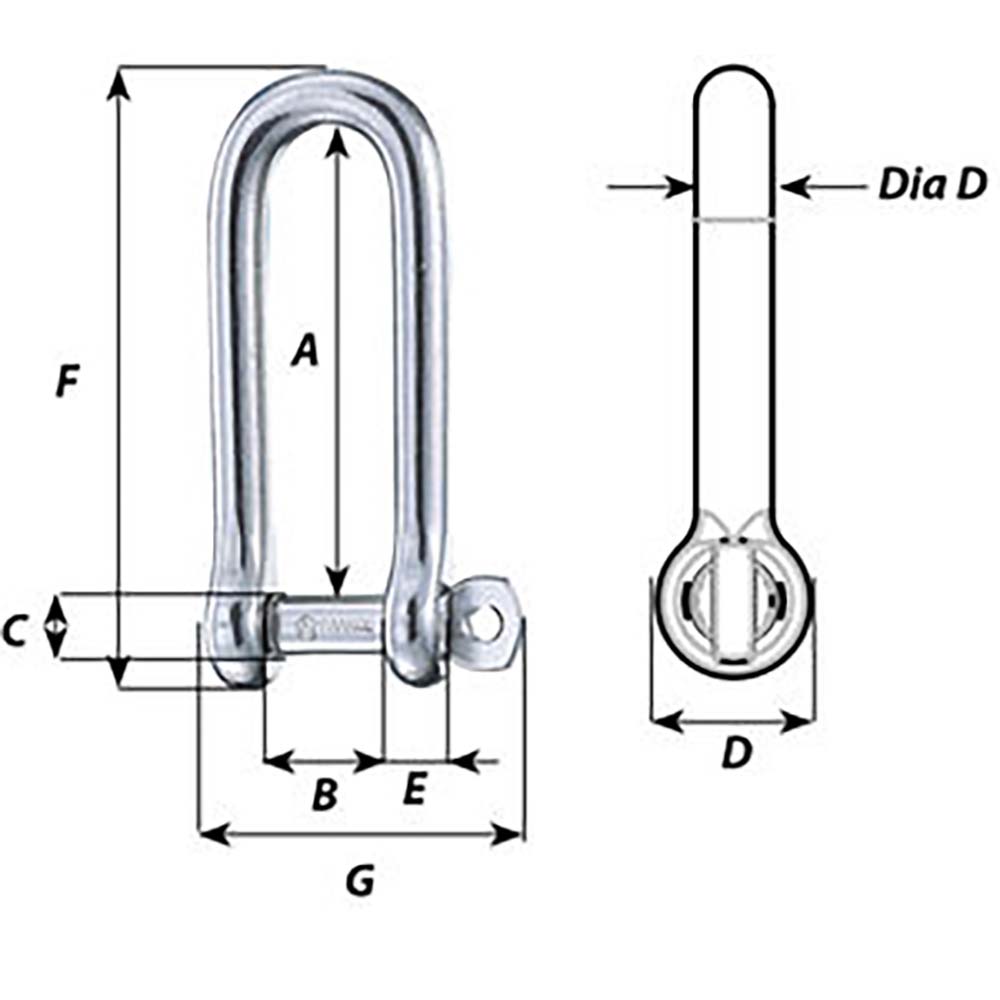

Dimensions (see 2nd image):
- A (inch) 2-7/16"
- B (inch) 5/8"
- C (inch) 23/64"
- D (inch) 43/64"
- D diameter (inch) 5/16"
- E (inch) 5/16"
- F (inch) 3-15/64"
- G (inch) 1-11/16"
Product Specifications
| Dimensions | 6" L × 2" W × 1" H |
|---|---|
| Shipping Weight | 0.22 lb |
