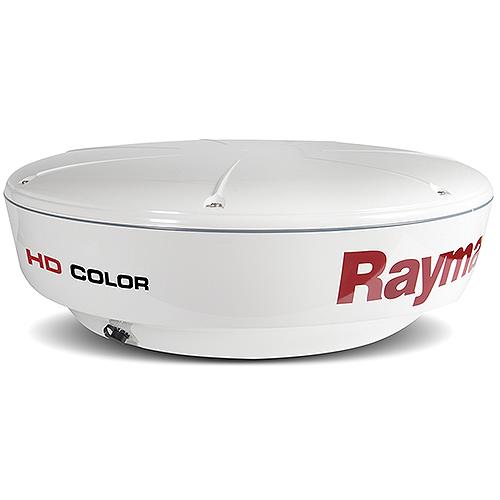

Raymarine T70168 18" Hd Color Radome Scanner W/10M Cable - T70168 - 152-T70168F1
|
$3,372.79
Access Code Required
Enter your access code to unlock purchasing for this item.
Compatible with the following Multifunction Displays: aSeries; c Series; e Series; NEW eS Series; gS Series; C Series Widescreen; E Series Widescreen; G Series. Networking: SeaTalkHSPeak Power Output (kW): 4.0 kW (nominal)Antenna Type: Patch ArrayBeam Width (Nominal): 4.9° horizontal, 25° verticalPolarization: HorizontalRotation Rate: Range less than 3 miles - 48 RPM (radar switches to 48 RPM automatically, unless 24 RPM is selected) - Range greater than 3 miles - 24 RPM (nominal)Power Consumption: 60 W (25 W Standby)Maximum Range Scale: 48 nmIF Frequency: 70 MHz (nominal)Transmitting Frequency: 9405 +/- 25 MHzTransmitter: Solid-state modulator driving MagnetronStandby Mode: Magnetron heater and control left on, all other services offDuplexer: CirculatorCE Approval: Conforms to 1999/5/ECFCC Approval: Conforms to 47CFR Part 2 and Part 80
| Part #: | 152-T70168 |
| Manufacturer: | RAYMARINE |
| Manufacturer Part #: | T70168 |
| UPC: | 723193774496 |
| Order In Multiples Of: | 1 |
| Size | 20.5" x 9.7" |
| Description | 4kW 18" w/10m Raynet Cable |
Variations
| 152-E92143 | Raymarine T92143 24 HD Color Radome Scanner w/o Cable |
| 152-T70169 | Raymarine T70169 24" HD Color Radome Scanner w/10m Cable |
