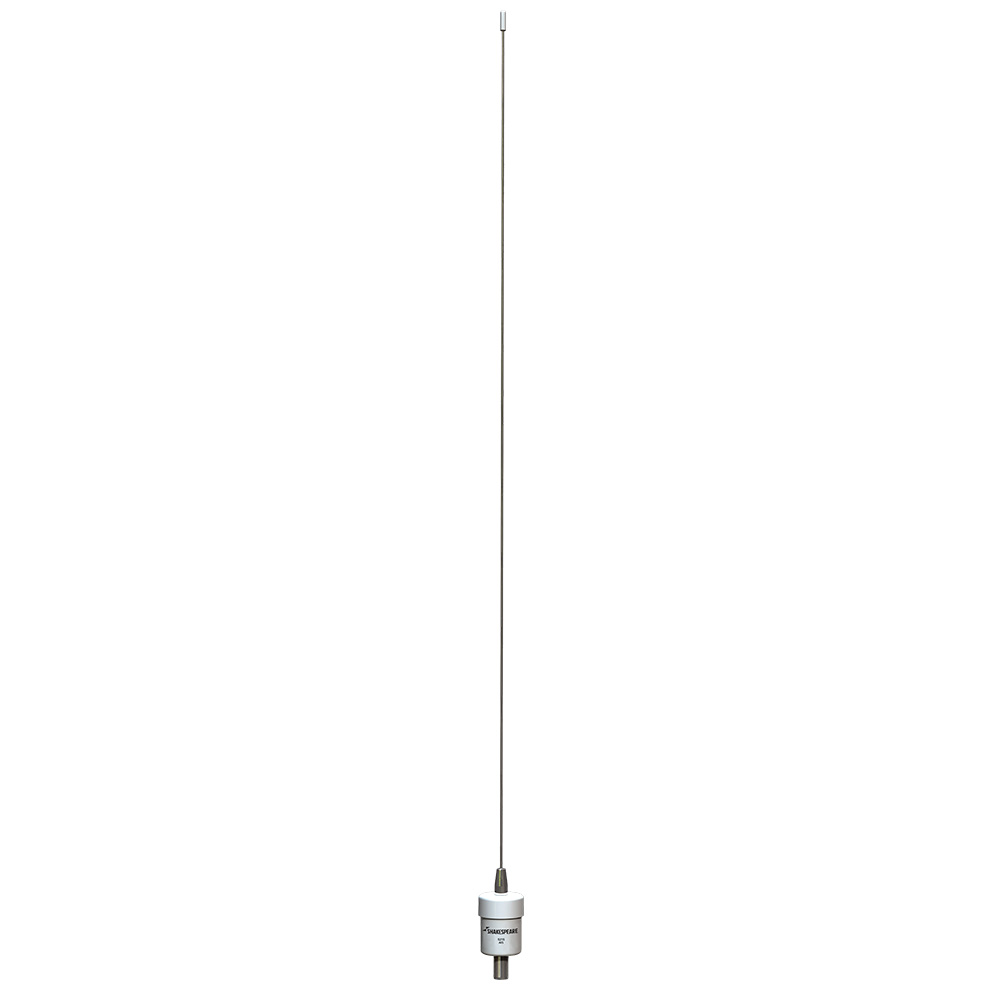

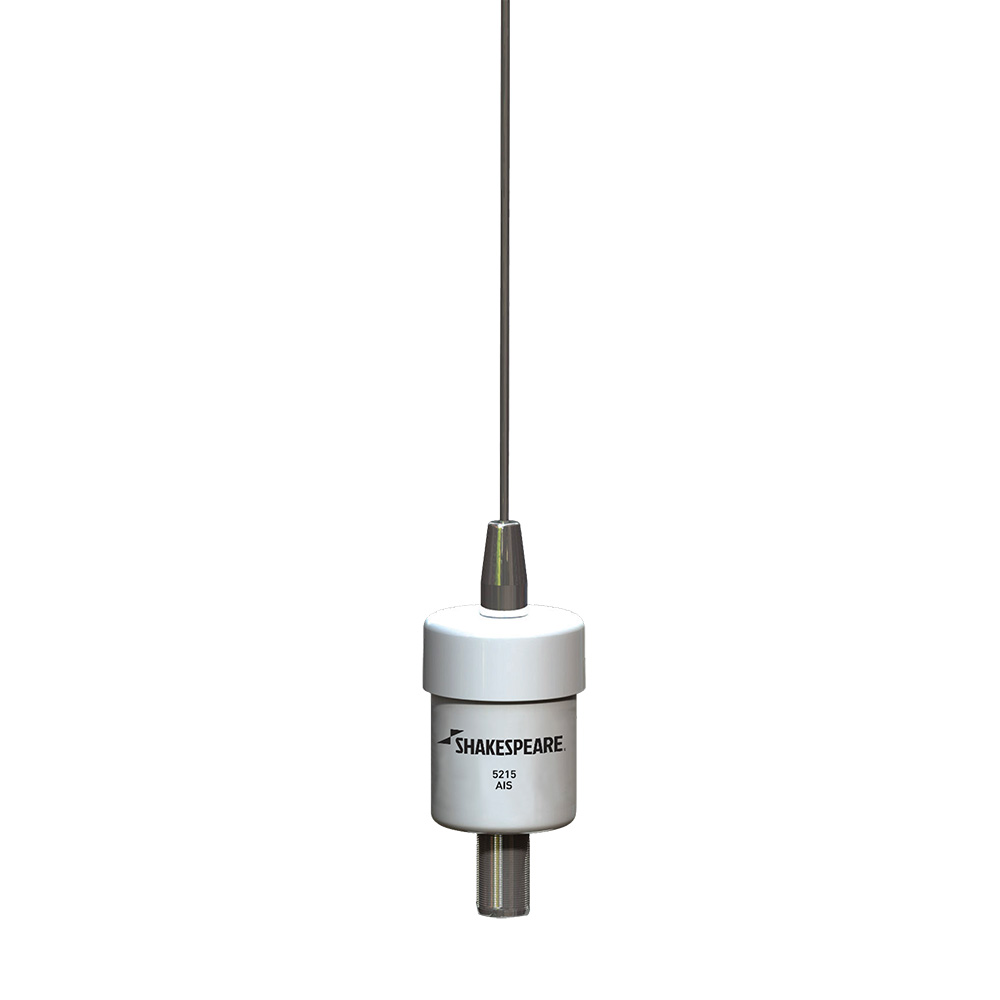

Shakespeare Style 5215 SQUATTY BODY® VHF Marine
36" LENGTH, 3dB
END-FED 1/2-WAVE STAINLESS STEEL WHIP
A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.
technical Specifications:
36" LENGTH, 3dB
END-FED 1/2-WAVE STAINLESS STEEL WHIP
A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.
- Hermetically sealed, tin-plated copper wire coil
- Stainless steel body and whip
- SO-239 connector - cable sold separately
- Mount: Stainless steel "L" bracket supplied, for mast mounting
- One section
- Shakespeare Limited Warranty: 2 years
technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | 7 MHz |
| SWR: | 1.5:1 @ 156.8 MHz |
| Impedance: | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | SO-239 connector |
| Height (feet): | 3 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Product Specifications
| Dimensions | 40" L × 3" W × 3" H |
|---|---|
| Shipping Weight | 1.5 lb |
| Country of Origin | CHINA |
| Harmonized Code | 8529.10.40.40 |
