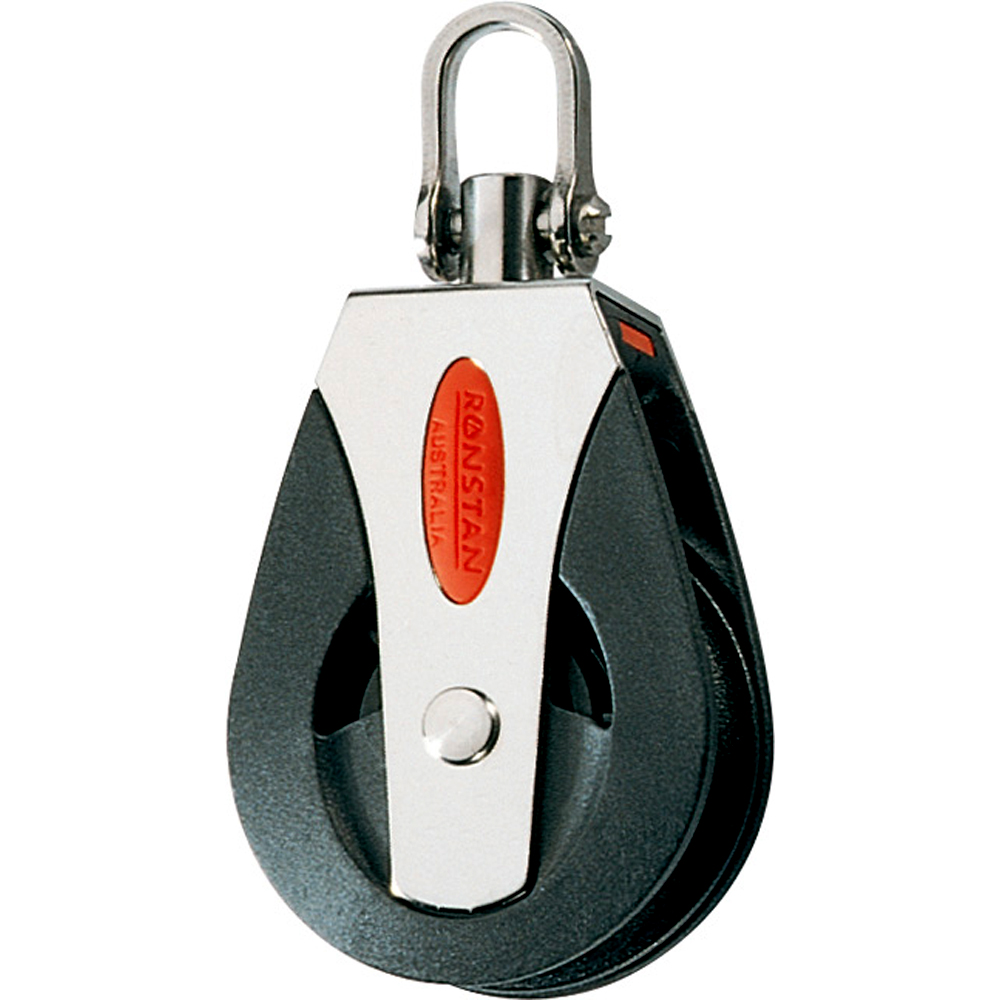

Series 50 High Load Block - Single - Universal Head
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Features:
Applications:
Materials:
Specifications:
Sheave Ø: 50mm(2")
Max. Rope Ø: 12mm(1/2")
Max. Cable Ø:5mm(3/16")
Max. Pin Ø: 5mm(3/16")
M.W.L.: 800kg(1,760lbs)
B. L.: 1,500kg(3,310lbs)
Weight: 117g(4.1oz)
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Features:
- Exceptionally high working loads
- Lightweight
- Cheek cut-outs for easy bearing maintenance
- Suitable for both rope or wire
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
Applications:
- Mainsheet
- Spinnaker sheets
- Halyards and other primary applications on boats up to 10M(33')
Materials:
- Nylatron® sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and U.V. resistant, fiber reinforced Nylon cheeks
Specifications:
Sheave Ø: 50mm(2")
Max. Rope Ø: 12mm(1/2")
Max. Cable Ø:5mm(3/16")
Max. Pin Ø: 5mm(3/16")
M.W.L.: 800kg(1,760lbs)
B. L.: 1,500kg(3,310lbs)
Weight: 117g(4.1oz)
Product Specifications
| Dimensions | 6" L × 3" W × 2" H |
|---|---|
| Shipping Weight | 0.3 lb |
| Country of Origin | ID |
| Harmonized Code | 8483.50.90.40 |
