Schaefer Spring Loaded/Lined Slide/Aluminum f/1-1/4" T-Track
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$567.88
Back to: Blocks

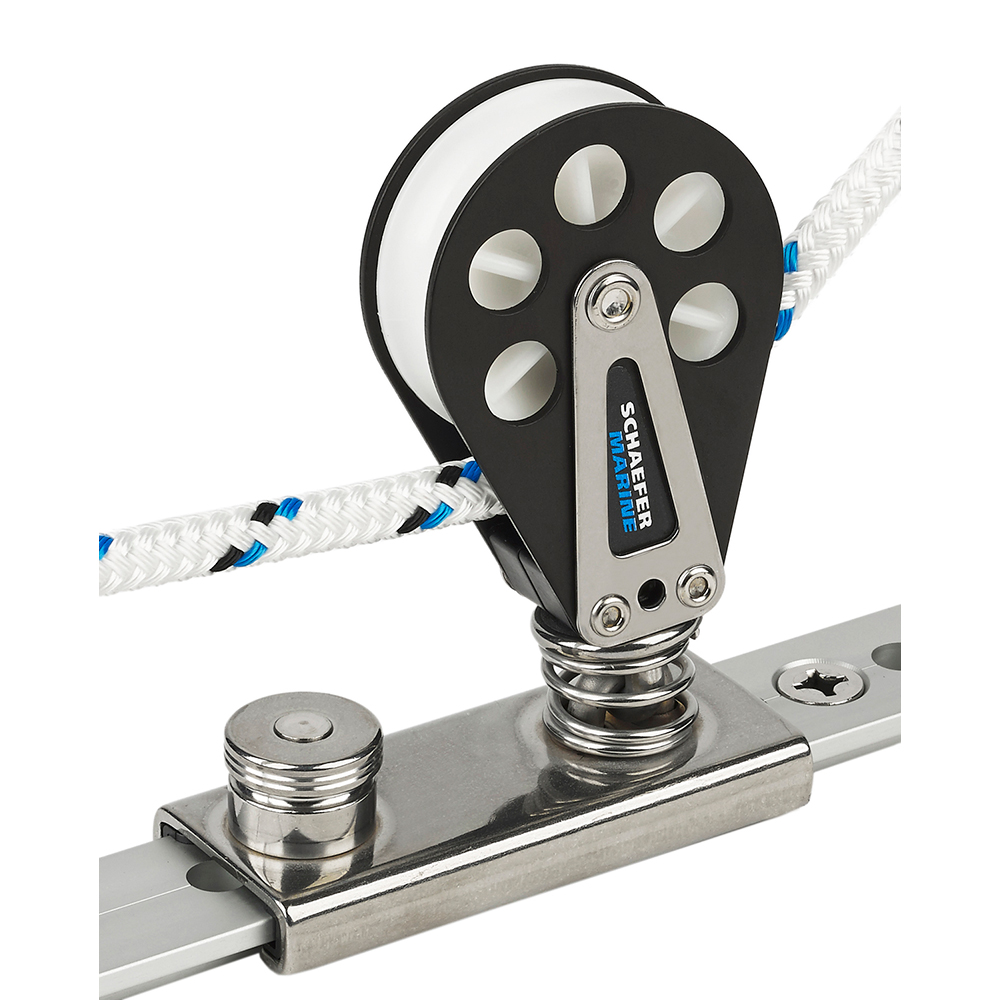

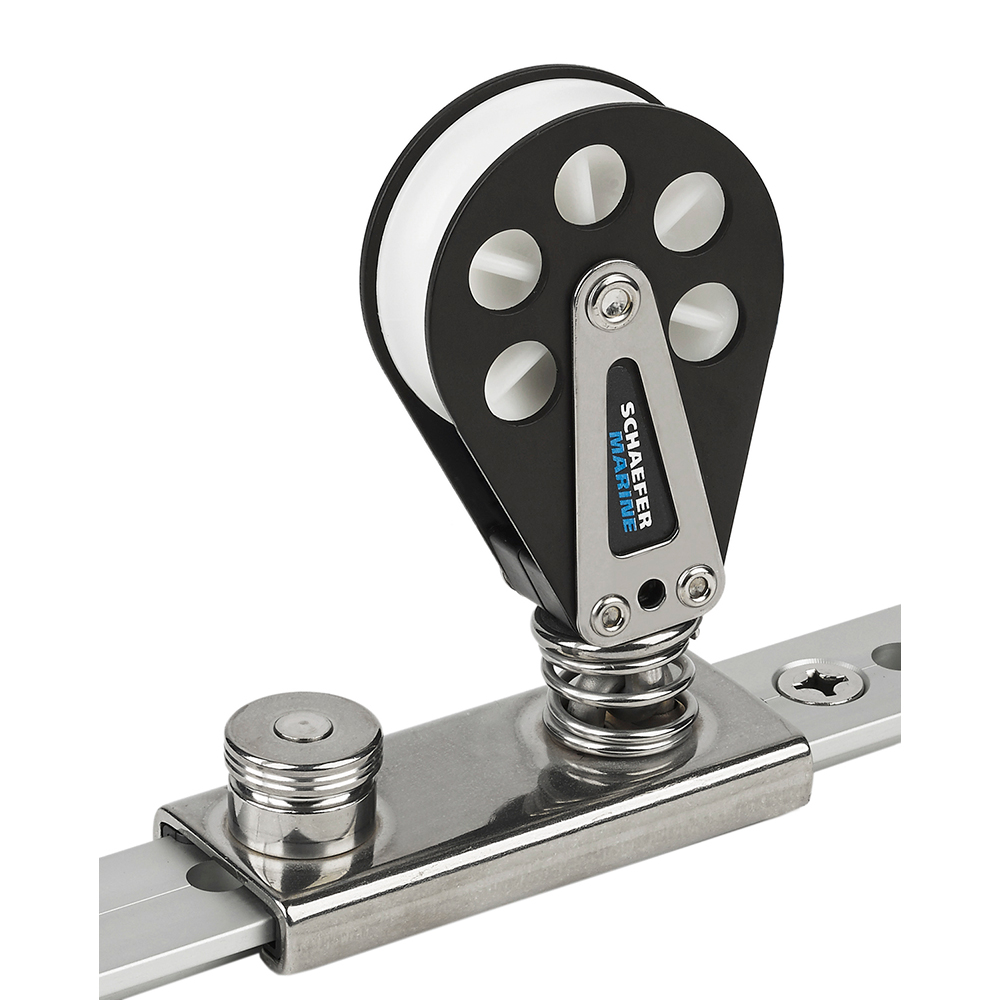

Spring Loaded/Lined Slide/Aluminum for 1-1/4" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
- Max. Boat Length 33' (10 m)
- Max. Boat Weight 12000 lbs. (5455 kg)
- Max. Sail Area 520 sq. ft. (48 m2)
- Sheave Diameter 2-3/8" (60 mm)
- Max Line 1/2" (12 mm)
- Length 4" (102 mm)
- Width 1-9/16" (39 mm)
- Height 4-15/16" (126 mm)
- Bearing Height 2-3/8" (67 mm)
- SWL 2250 lbs. (1020 kg)
- Weight 12 oz. (340 g)
Product Specifications
| Dimensions | 5" L × 4" W × 2" H |
|---|---|
| Shipping Weight | 1 lb |
| Country of Origin | UNITED STATES |
| Harmonized Code | 8302.49.45.00 |
